The next generation
The “X” stands for the neXt generation of engines from MAN Engines with eXtra displacement – 30 litres – and an eXcellent power-to-weight ratio. The MAN V12X-2200 delivers 2,200 hp, 29.6 litres displacement and 7,350 Nm torque.
MAN MARINE ENGINE · Light Duty

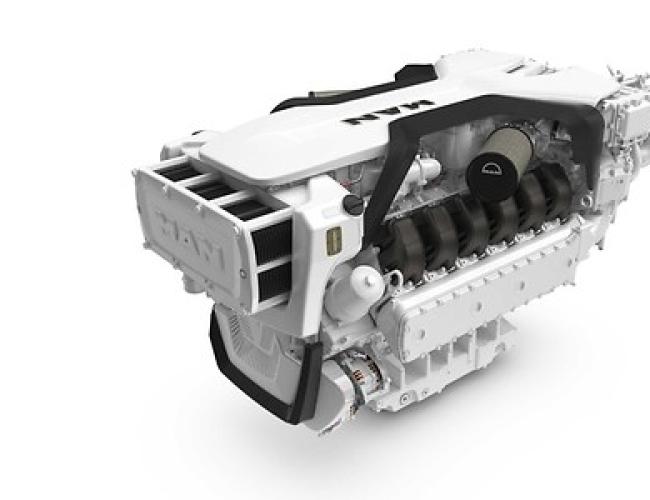

MAN V12X
The next generation from MAN Engines: extra displacement and an excellent power-to-weight ratio.
PRODUCT DETAILS
Characteristics
- Rated power
- 2,200 hp / 1,618 kW
- Displacement
- 29.6 l
- Torque
- 7,350 Nm
- Specific output
- 54.6 kW/l
- Injection system
- Common Rail
- Engine control unit
- MD1
MAN ENGINE DATA
Technical data
Performance Data
| Specification | MAN V12X-2200 |
|---|---|
| Arrangement/number of cylinders | V12 |
| Bore | 138 mm |
| Stroke | 165 mm |
| Displacement | 29.6 l |
| Rated power | 2,200 hp / 1,618 kW |
| Rated speed | 2,300 min-1 |
| Torque | 7,350 Nm |
| Specific output | 54.6 kW/l |
| Engine length | 2,335 mm |
| Engine width | 1,153 mm |
| Engine height | 1,320 mm |
| Weight (dry) | 2,720 kg |
| Injection system | Common Rail |
| Engine control unit | MD1 |
| Exhaust status | IMO Tier III, IMO Tier II, EPA Tier 3, RCD 2013/53/EC |
